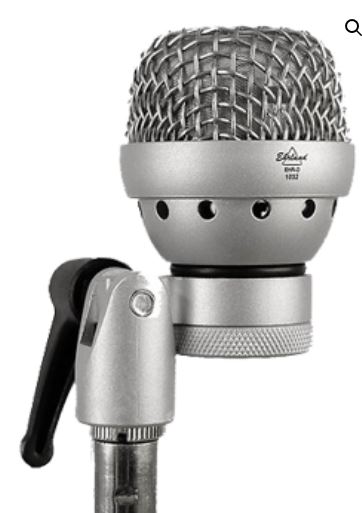

Ehrlund EHR-D Triangular Membrane Condenser Mikrofone



EHR-D

Our most robust microphone. Designed specifically to block out unwanted sounds from sides and back.

EHR-D is a mic designed for loud sound sources, tentatively for drums, horns or guitars.

The housing is made for the rough life on the road.


Bild Typ Beschreibung
Verkaufspreis




EHR-D

Our most robust microphone. Designed specifically to block out unwanted sounds from sides and back.

EHR-D is a mic designed for loud sound sources, tentatively for drums, horns or guitars.

The housing is made for the rough life on the road.




Link to factory Info:
SFr. 1'327.40


    Zubehör Link

TECHNICAL INFORMATION

TYPE Condenser microphone with triangular membrane
POLAR PATTERN Directional cardioid
FREQUENCY CAPTURE RANGE 7-87,000 Hz
IMPEDANCE Handles all impedances without altering the frequency response
EQUIVALENT NOISE LEVEL Absolute level lower than 9 dBA
MAXIMUM SPL INPUT 135 dB
POWER FEED 48 V phantom feed, 2.0 mA
CONNECTOR XLR
POLARITY Positive pressure on the membrane produces positive voltage on pin 2 relative to pin 3
CONSTRUCTION Aluminium body, mesh made of toughened stainless steel
DIMENSIONS Ø53 mm x 95 mm
WEIGHT 170 grams


 Anfrage/Bestellung einfach per email: Inquire to:  Info@gotham.ch

Preisstellung: Terms & Conditions:
Abholpreise in CHF (Schweizer Franken), Nettopreis, per Stück, inkl. 7,7 % MwSt., Franko Dietikon (Schweiz). Zuzüglich allfällige Verpackungs & Versandkosten. Preis- und Produkteänderungen bleiben vorbehalten! Konditionen und Mengenrabatte auf Anfrage. Garantie 24 Monate bring-in/take-out exkl. Verschleissteile. Händlerkonditionen auf Anfrage.
Indicated prices are in CHF (Swiss Francs). ex works Dietikon Switzerland. Special net prices and terms, dealer and export prices are quoted in short notice. Please send email to info@gotham.ch.
Hier finden Sie ein Bestellformular welches Sie ausfüllen können und uns per email oder fax schicken können
We also provice an orderform (Doc) you can complete and email or fax to us.
