Triangular Membrane Condenser Microphone Cardioid

Description

A unique studio microphone with a clean and natural sound

The EHR-M is a Swedish manufactured condenser microphone for studio use, designed for music and song recording. Its patented triangular capsule design has been allied to a very low noise and low power phantom feed amplifier. It has been designed to deliver the cleanest sound possible. This enables complex signals to be reproduced in their original form. The sound becomes transparent and relaxed.
The microphone has both broad and smooth pickup characteristics, with deep bass and extended treble. This microphone is amongst the lowest self-induced noise and highest sensitivity on the market. The output signal is very strong.

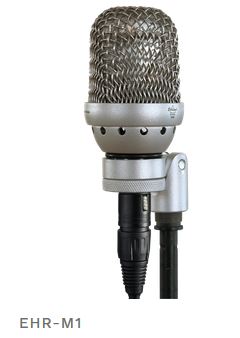

EHR-M1

A smaller, more robust version of the EHR-M. With an integrated coarse dirt filter and high impact resistance, it’s suitable for use on tour and in broadcasting. Works great in overhead purposes.
Bild Typ Beschreibung Neu Mai2023
Verkaufspreis

EHR-M1

EHR-M1

A smaller, more robust version of the EHR-M. With an integrated coarse dirt filter and high impact resistance, it’s suitable for use on tour and in broadcasting.
Works great in overhead purposes.




Link to factory Info:		 SFr. 1'841.30

EHR-M Link to the factory Info:
 SFr. 1'841.30
    Zubehör Link

TECHNICAL INFORMATION EHR-M1

TYPE Condenser microphone with a unique triangular membrane
POLAR PATTERN True cardioid
FREQUENCY CAPTURE RANGE 7-87,000 Hz
IMPEDANCE Handles all impedances that arise without altering the frequency response
EQUIVALENT NOISE LEVEL Absolute level lower than 7 dBA
MAXIMUM SPL INPUT 125 dB
POWER FEED 48 V phantom feed, 2.0 mA
CONNECTOR Standard 3-pin XLR
POLARITY Positive pressure on the membrane produces positive voltage on pin 2 relative to pin 3
CONSTRUCTION Aluminium body, mesh made of toughened stainless steel
DIMENSIONS Ø53 mm x 95 mm
WEIGHT 185 gram

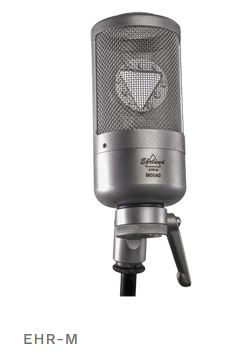

TECHNICAL INFORMATION  EHR-M

TYPE Condenser microphone with Ehrlund patented triangular membrane
POLAR PATTERN True cardioid
FREQUENCY CAPTURE RANGE 7-87,000 Hz
IMPEDANCE Handles all impedances that arise without altering the frequency response
EQUIVALENT NOISE LEVEL Absolute level lower than 7 dBA
MAXIMUM SPL INPUT 125 dB
POWER FEED 48 V phantom feed, 2.0 mA
CONNECTOR Standard 3-pin XLR
POLARITY Positive pressure on the membrane produces positive voltage on pin 2 relative to pin 3
CONSTRUCTION Aluminium body, mesh made of toughened stainless steel
DIMENSIONS Ø60 mm x 155 mm
WEIGHT 340 gram
